Recirculate, an EU-funded project focused on advancing innovations for second-life batteries, is developing a robotic EV battery disassembly system. This innovation addresses one of the battery industry’s most pressing bottlenecks: safe and efficient automated disassembly.

The project has successfully completed its first phase: the creation of a set of tools and machine learning models for the robotized dismantling of an EV battery from pack to cell level.

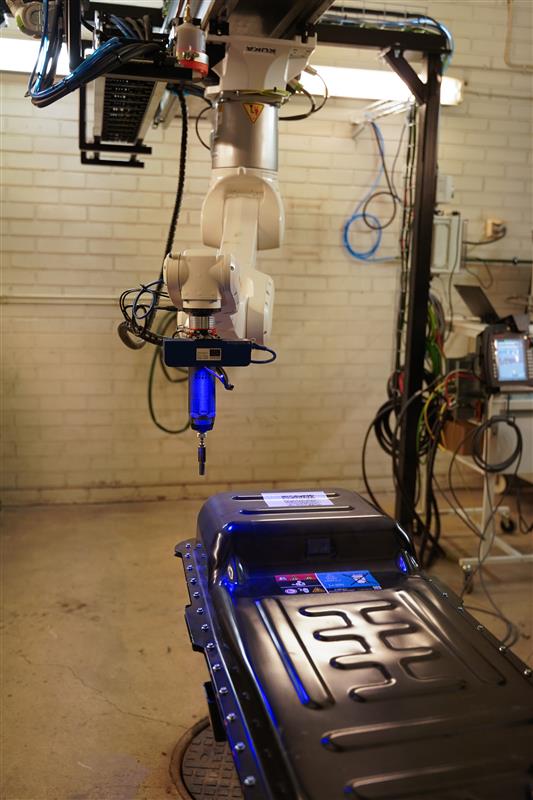

The system is designed to dismantle batteries in two key phases: from battery pack to module, and from module to cell level. A team from the Centria University of Applied Sciences created a purpose-built robotic cell for Recirculate, using a KUKA KR10 industrial robot. This robot, equipped with specially designed tools and a mobile linear track, can autonomously detect, unscrew and remove components of high-voltage battery packs.

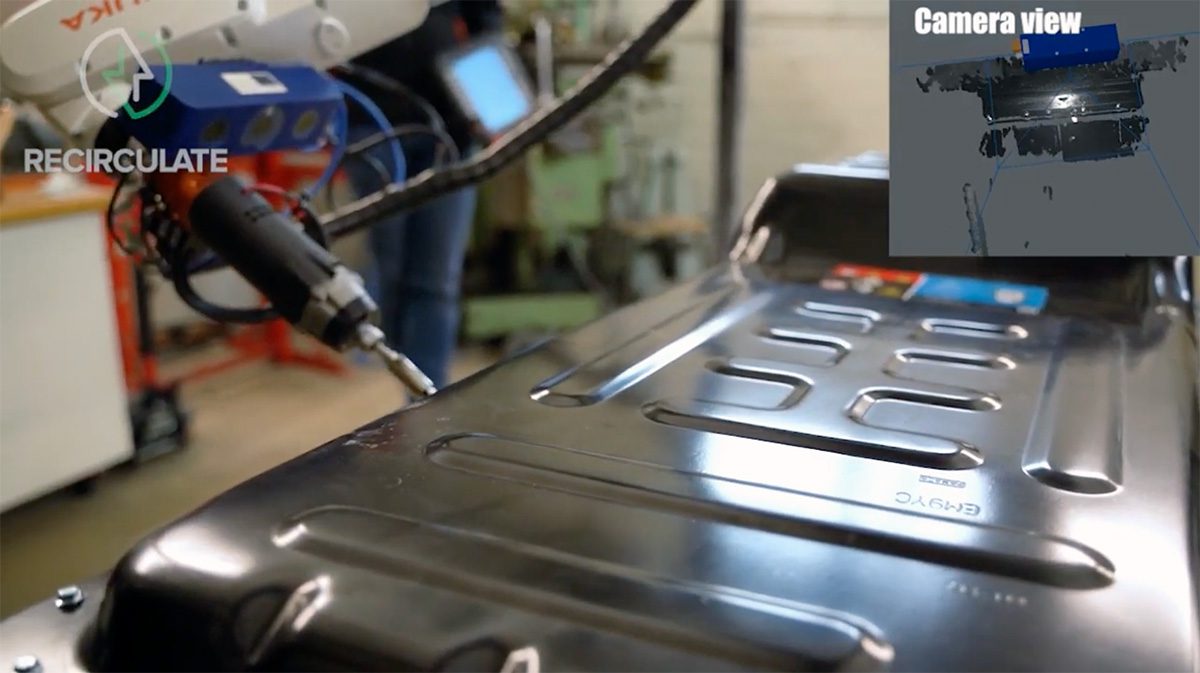

“There are approximately 50 screws on the lid alone,” says Tomi Pitkäaho, Principal Lecturer in Research at Centria University. “We’ve trained a machine learning model to locate and identify each screw, extract their exact coordinates, and send this data to the robot. With a depth camera installed directly on the tool, the robot can precisely determine not just the x and y position, but also the z-depth for each component.”

The system uses multiple ML models to identify and extract critical components, including screws, connectors and wiring. Once the lid is removed using a vacuum gripper, specialized robotic tools are used to dismantle internal components. The models not only recognize the elements but also analyze wire orientations to determine optimal disassembly strategies.

“We’ve developed tools that can detect and manipulate parts with remarkable precision,” Pitkäaho explains. “From training datasets to model architecture and deployment, it took 18 months of dedicated work by our team of robotics, AI and ML experts.”

The team has also created a battery identification model that can recognize batteries even in the absence of QR codes or digital product passports. The team says the model can now identify battery types from manufacturers such as Ford and Tesla with nearly 100% accuracy, enabling the system to automatically select the correct disassembly program.

Source: Recirculate
